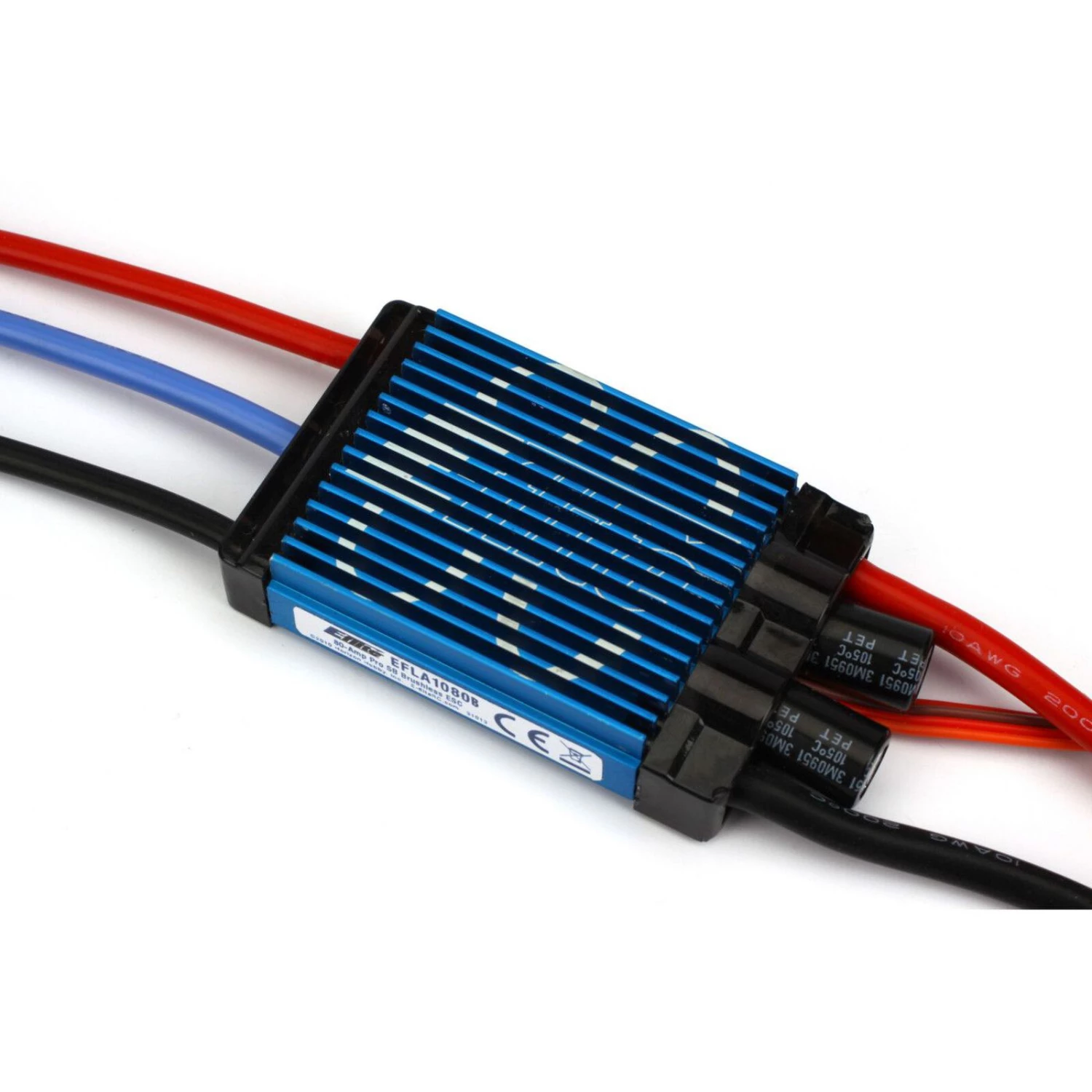

E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC V2: EC5

• Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
• 5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
• Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
• 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
• Programmable motor braking
• Safe power-arm mode prevents accidental starts
• Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
• Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
• Programmable soft start-up rate – .25 second or 1 second
• Auto motor shut down if signal is lost or there is interference
• Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors
• Two operating modes–Airplane or Heli

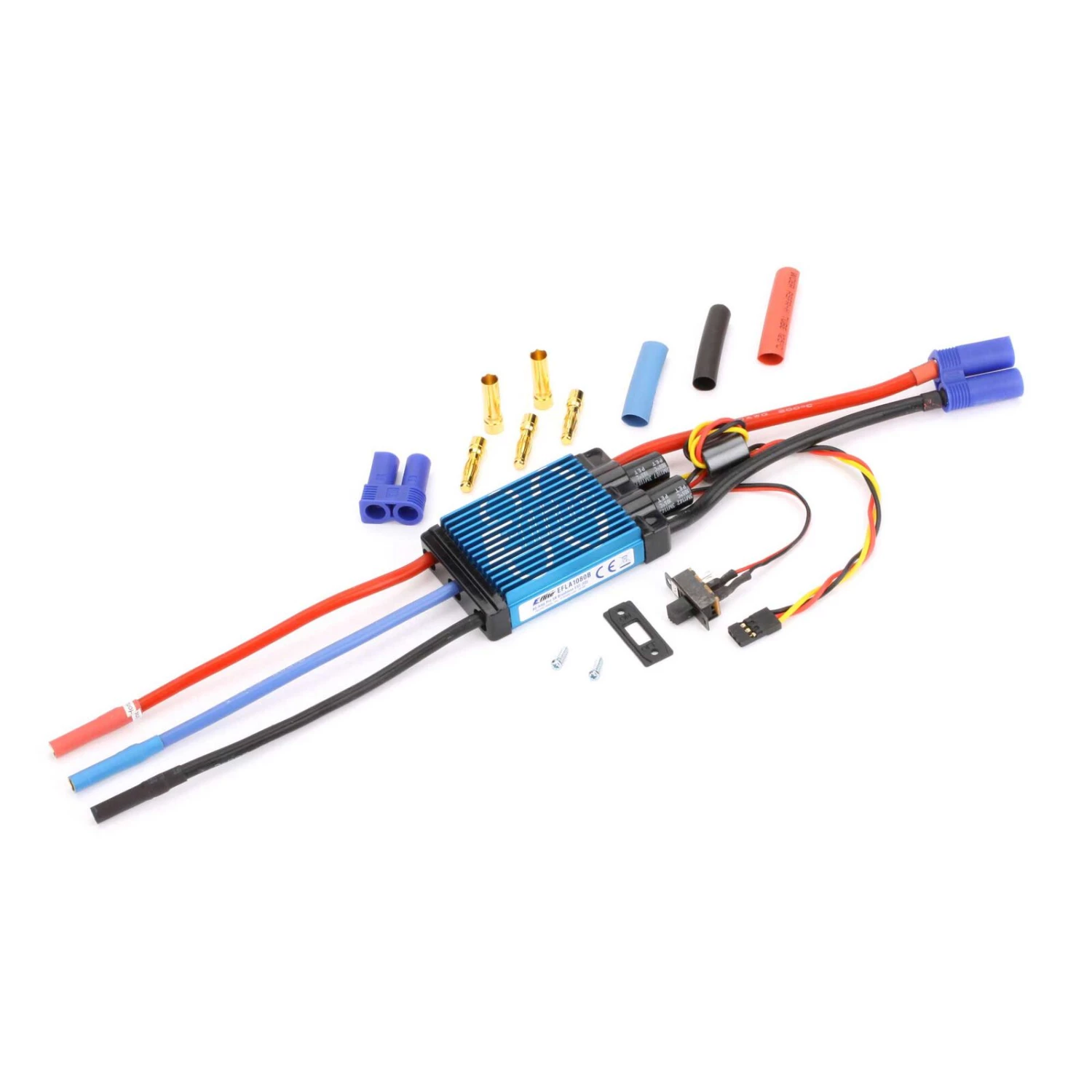

• Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
• NOTE: Not recommended to use with E-flite Power 60 Brushless Outrunner (EFLM4060B)

Product Specifications

Forward	Yes
Maximum Burst Current	100A
BEC Voltage	5.5V Switch-mode
Part Type	Electronics
Time Delay Brake	Yes
Connector Type	EC5
Brakes	Yes
Programmable	Yes
Amperage	60 & Up
Auto Cutoff	Yes
BEC Continous Current	5A
Output Connector	4mm Gold Bullet, 12AWG leads
Overload Protection	Yes
