E-flite 7.6-Gram DS76 Digital Sub-Micro Servo

• Digital amplifier for superior accuracy, response and holding torque
• High speed, .11 sec @ 60° @ 4.8V for quick control response
• High torque, 24.2 oz-in (1.75 kg-cm) @ 4.8V
• Precise Centering – less than 1°
• Lightweight, just 7.6 grams
• Universal connector compatible with major brand receivers
• Includes complete mounting hardware

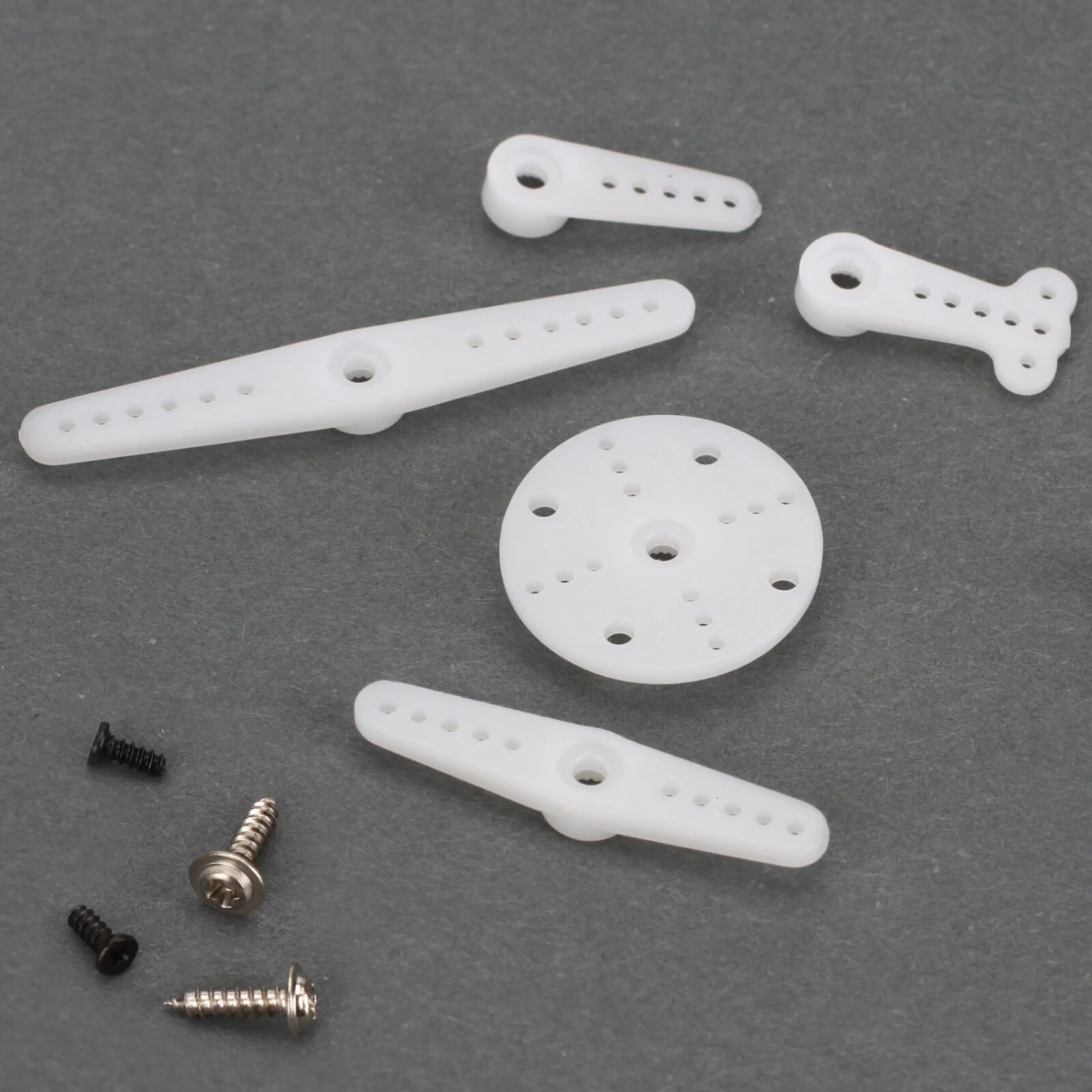

• Includes multiple servo arms including an extra-long 3D servo arm for extreme throws

Product Specifications

Servo Size Category	Sub-Micro
Servo Type	Digital
Max Servo Torque	20-39 oz-in
Gear Type	Plastic
Maximum Servo Speed	0.11 sec/60 deg @ 4.8V; 0.09 sec/60 deg @ 6.0V
Current Draw Idle	27mA @ 4.8V
Current Draw Stall	473mA @ 4.8V
Motor Type	Coreless
Servo Operating Voltage	4.8 – 6.0V
Maximum Servo Torque	24.2 oz-in (1.75kg-cm) @ 4.8V; 28.0 oz-in (2.00kg-cm) @ 6.0V
