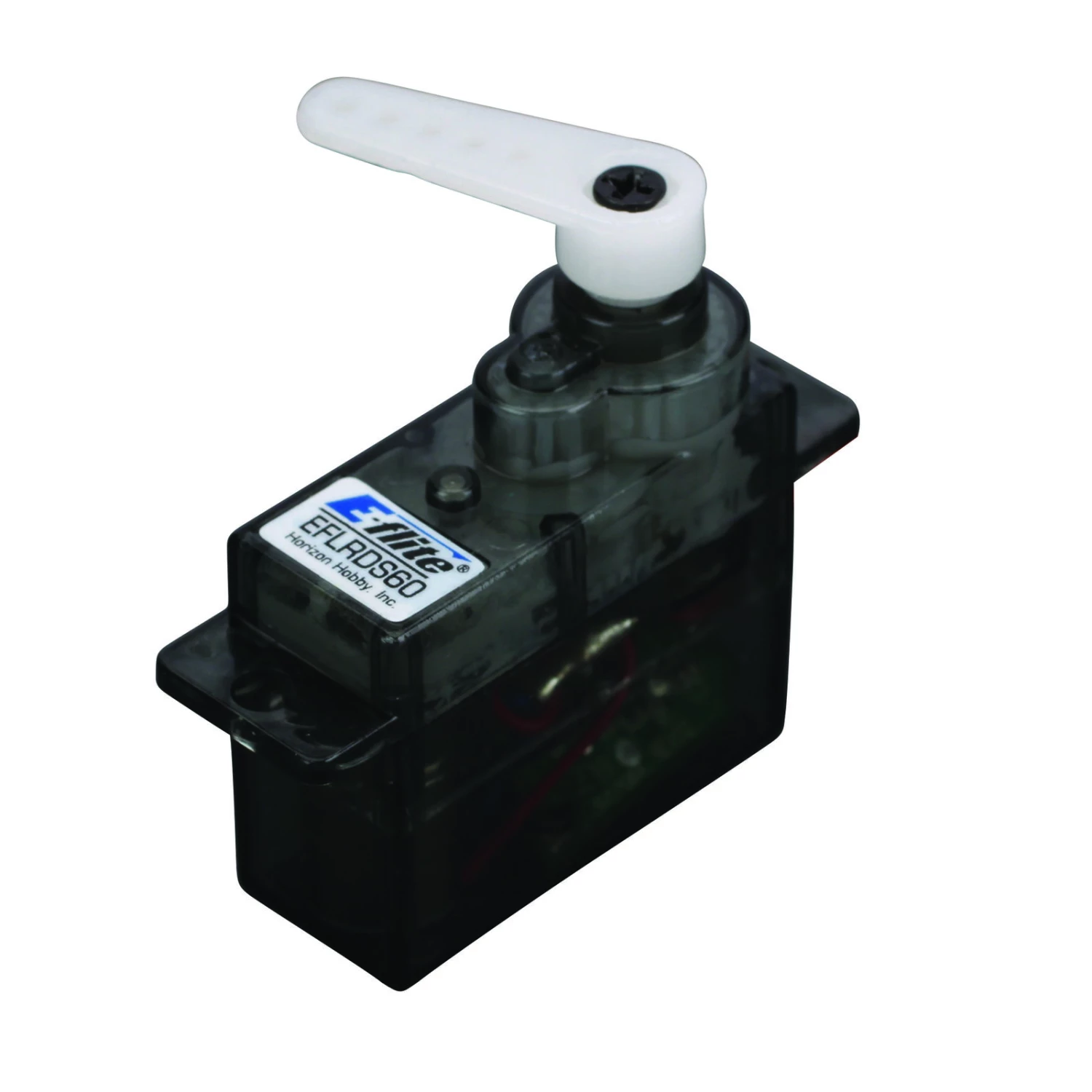

E-flite 6.0-Gram DS60 Digital Super Sub-Micro Servo

• Digital amplifier for superior accuracy, response and holding torque
• High speed .09 sec @ 60° @ 4.8V for quick control response
• High torque, 13.1 oz-in (0.94 kg-cm) @ 4.8V
• Precise centering – less than 1°
• Lightweight, just 6.0 grams
• Universal connector compatible with major brand receivers
• Includes complete mounting hardware

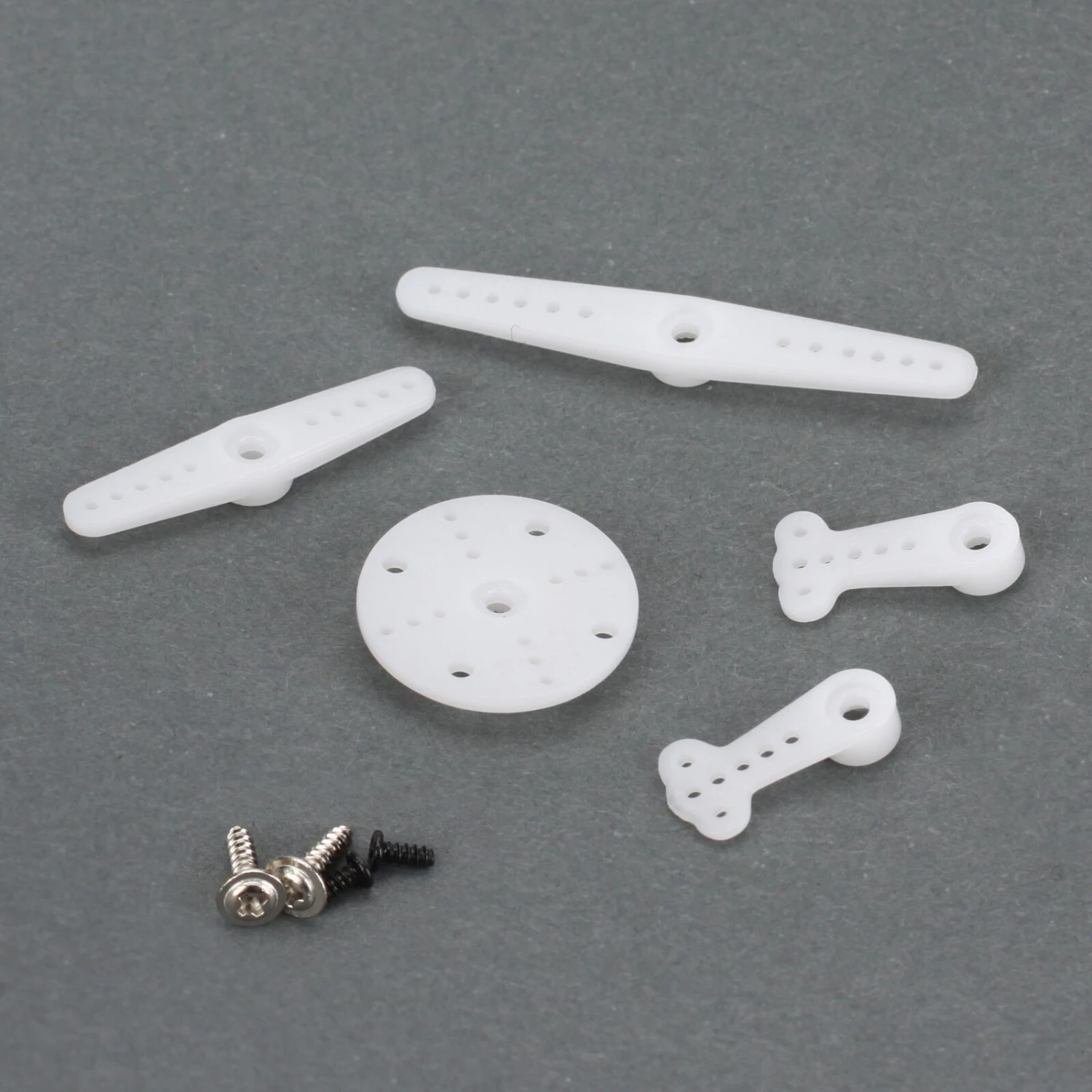

• Includes multiple servo arms including an extra-long 3D servo arm for extreme throws

Product Specifications

Current Draw Stall	560mA @ 4.8V
Motor Type	Coreless
Servo Operating Voltage	4.8 – 6.0V
Maximum Servo Torque	13.1 oz-in (0.94 kg-cm) @ 4.8V; 16.1 oz-in (1.15 kg-cm) @ 6.0V
Max Servo Torque	Less than 20 oz-in
Gear Type	Plastic
Maximum Servo Speed	0.09 sec/60 deg @ 4.8V; 0.08 sec/60 deg @ 6.0V
Servo Size Category	Sub-Micro
Current Draw Idle	25mA @ 4.8V
Servo Type	Digital
