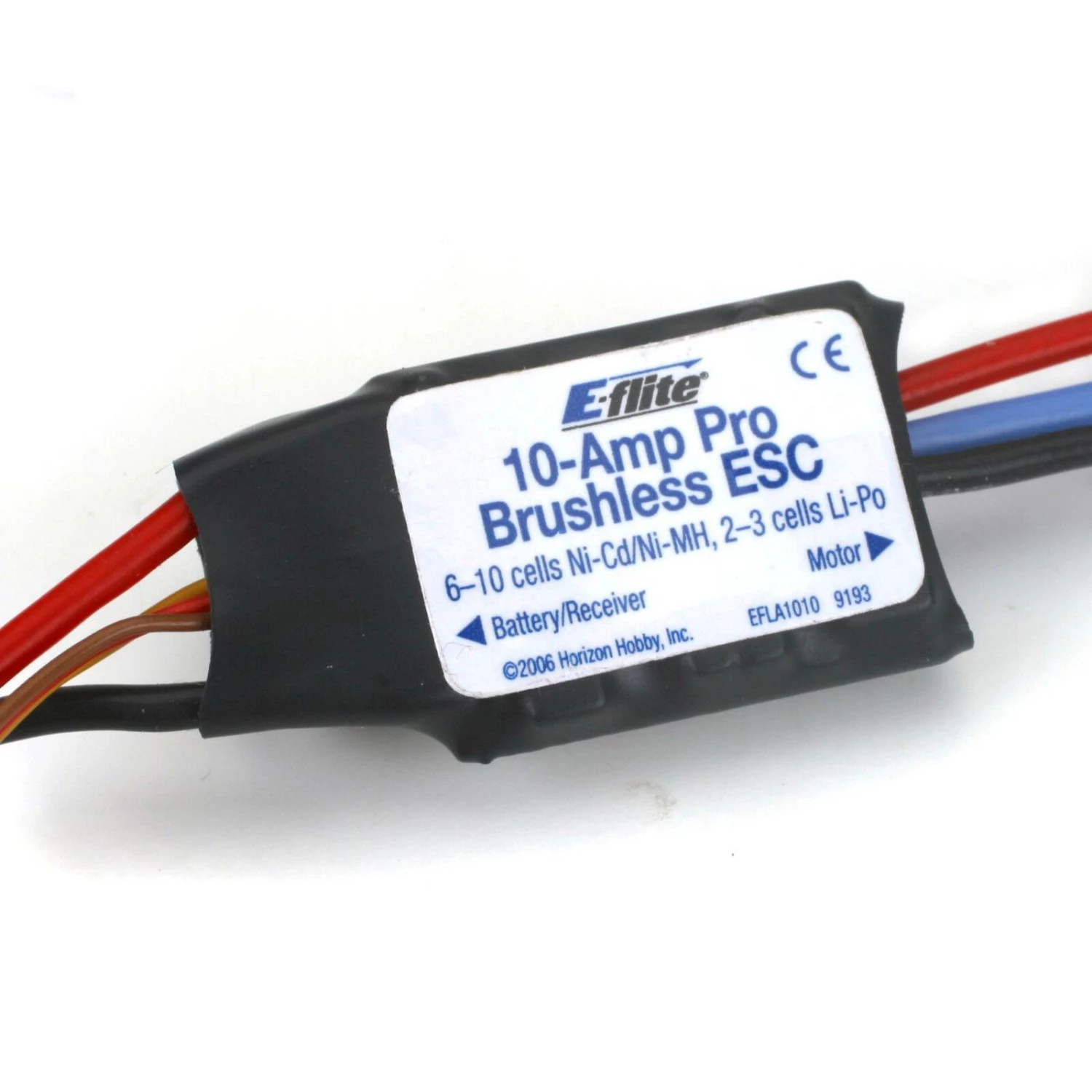

E-flite 10-Amp Pro BEC Brushless ESC: JST

• Up to 10-amp continuous current with proper air flow
• Programmable motor braking
• Safe power-arm mode prevents accidental starts
• Programmable low-voltage cutoff with settings for 2-cell Li-Po (6V), 3-cell Li-Po (9V) or 70% of battery starting voltage
• Programmable throttle input range (1.1ms–1.9ms or Auto Select)
• Auto motor shutdown if signal is lost or there is interference
• Programmable timing—2 user-selectable ranges for use with a large variety of brushless motors

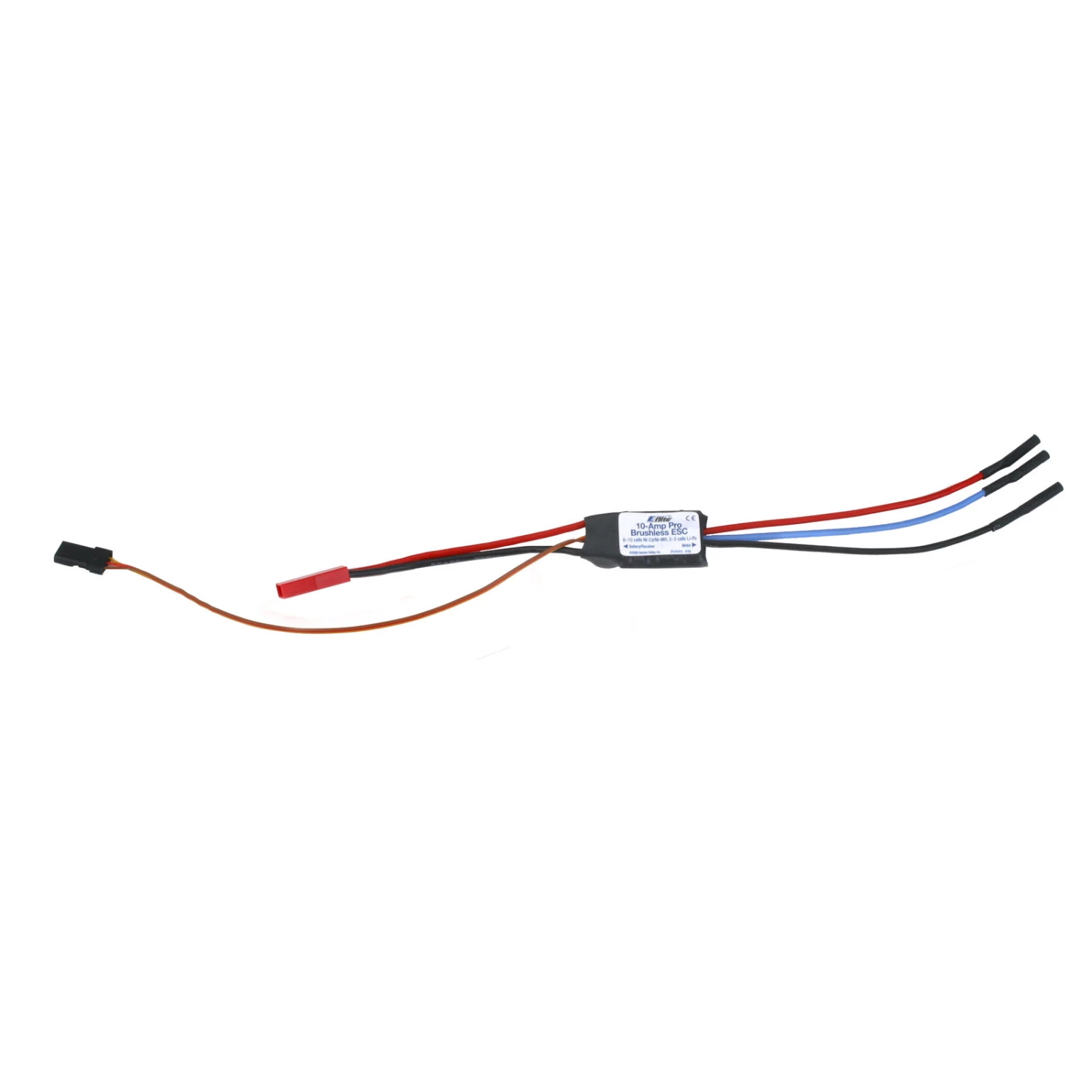

• Pre-wired connectors—JST on battery input and 2mm female gold bullets on motor output leads
• Soft start

Product Specifications

Part Type	Electronics
Amperage	20 & Under
Connector Type	JST
Programmable	Yes
Output Connector	20AWG with 2mm female gold bullet connectors
Maximum Burst Current	12A (15 sec)
Brakes	Yes – Programmable
